Charts

Five dashboard charts drawn on the canvas primitive: a line, grouped bars, a stacked area, a donut and a sparkline, in a palette the theme owns.

By the end of this chapter you can put a chart in a window from markup or Java, give it series, a time axis, a limit and a fill, and read it from the keyboard. The five widgets live in goldberry’s own catalogue. There is no chart engine behind them, so a chart takes the theme, the text stack and hit testing like any other widget.

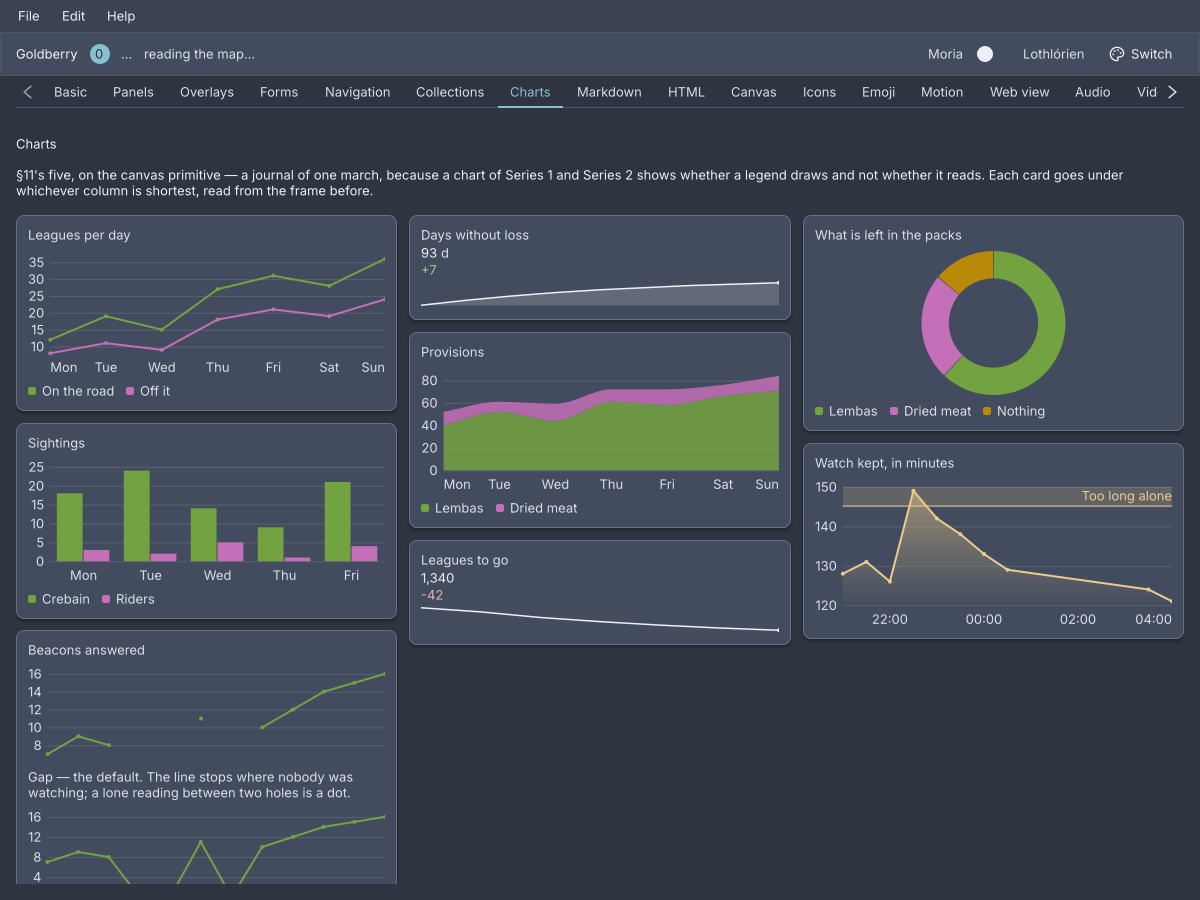

The showcase's Charts screen. Every card is one of the five widgets below.

What the five share

The palette is the theme’s. A series takes a colour by its position, slot 1 to slot 8, read from --gb-chart-1 to --gb-chart-8. The order was searched over every permutation so that adjacent series stay apart under colour-vision deficiency, and a ninth series is drawn in slot 8 again rather than in a generated hue (ADR-0194). There is no colour argument. An application that wants one series in one colour writes a rule, and the plot and its legend swatch both follow it (ADR-0195):

#revenue { --gb-chart-1: #b48ead; }

Data is a Series. Series.of("Downloads", 12, 19, 15) is a name and values in order. A hole is Double.NaN, and a null in a list is read as one. What the values are plotted against is the chart’s: the point index by default, labelled by categories, or one Instant per point.

Markup holds small static data. A series node with point children is for a sample or a fixture. Data from a model is Java, through the record.

A legend appears for two or more series. Clicking an entry shows that series alone, and clicking it again puts them all back (ADR-0198).

Hovering draws a crosshair at the nearest point, a marker on each series and a readout of what they read. The same crosshair can be shared across several charts through a CrosshairGroup (ADR-0206).

Long series are reduced to about one point per pixel before drawing, with the largest-triangle-three-buckets algorithm, so a spike survives where drawing every point would lose it.

A chart with no data says so. It keeps its box and shows a message, so a wall of loading cards does not reflow when the data lands (ADR-0200).

line-chart

A trend with axes: one line per series, a legend, a crosshair and a readout.

line-chart id="downloads" {
    series name="Downloads" {
        point "0.1" 1200
        point "0.2" 3400
        point "0.3" 2900
    }
    series name="Installs" {
        point "0.1" 800
        point "0.2" 2100
        point "0.3" 2400
    }
}

import dev.goldberry.widgets.data.Series;
import dev.goldberry.widgets.data.linechart.LineChart;

new LineChart(
        List.of(Series.of("Downloads", 1200, 3400, 2900), Series.of("Installs", 800, 2100, 2400)),
        List.of("0.1", "0.2", "0.3"),
        Attributes.NONE.id("downloads")
);

The knobs are withers, and each returns a LineChart:

chart.fill(Fill.GRADIENT)                                   // a fade under the line, ADR-0207
     .curve(Curve.SMOOTH)                                   // monotone, cannot overshoot, ADR-0204
     .times(instants, ZoneOffset.UTC)                       // the x is when, not which, ADR-0203
     .threshold(Threshold.above(145, Threshold.Level.WARNING).labelled("Too long"))
     .nulls(NullPolicy.ZERO)                                // GAP is the default, ADR-0201
     .softAxis(99, 100)                                     // or .axis(0, 100) for a hard range
     .logY()                                                // a non-positive reading becomes a hole
     .markers(Markers.ALWAYS)                               // AUTO by default
     .crosshair(group)                                      // a CrosshairGroup the application holds
     .loading();                                            // or .failed("The query timed out")

Fill is NONE, SOLID or GRADIENT. Curve is LINEAR, SMOOTH or STEP. NullPolicy is GAP, CONNECT or ZERO. Markers is AUTO, ALWAYS or NEVER. A Threshold is at, above, below or band, in one of four semantic levels, INFO, SUCCESS, WARNING or DANGER, and never a series colour (ADR-0202).

Attributes

Everything else is Java. A line-chart node takes no fill, curve, time axis or threshold in markup.

Styling

The CSS type is line-chart, a column of the plot and the legend. Its parts are chart-plot, chart-legend, chart-legend-entry, chart-legend-swatch and chart-message. An entry carries .interactive when a click isolates its series and .muted while its series is hidden. The message carries .failed for a failure. chart-plot:focus-visible draws the focus ring. The series colours are --gb-chart-1 to --gb-chart-8. The plot has no background of its own, so a chart sits on whatever surface it was given.

Keyboard

Tab reaches the plot. Left and Right walk the crosshair, Home and End jump to the ends, and Escape lets go (ADR-0199).

Read more

• ADR-0198: A chart’s readout is painted and its legend is a control
• ADR-0201: A hole is not a zero
• ADR-0203: A time axis is time, not a relabelled index
• ADR-0204: A smooth line cannot overshoot
• ADR-0205: A log axis has no room for zero
• ADR-0207: A fill may be a ramp

series

One line of data, written inline: a name and its point children.

line-chart {
    series name="Uptime" {
        point "Mon" 99.95
        point "Tue" 99.91
    }
}

new ChartSeries("Uptime", List.of(99.95, 99.91), List.of("Mon", "Tue")).toSeries(0);

A series node is a widget that draws nothing, so that the inflater can hand it to its chart. Its parent reads it and never lays it out.

The CSS type is series, sized to zero.

point

One reading of a series: a label, then a number.

bar-chart {
    series name="Riders" {
        point "Mon" 3
        point 2
    }
}

The number is required, and a point with none is skipped. The label is optional. A series whose labels are all blank gives the chart no x labels.

bar-chart

Magnitude by category: one group of bars per point, grouped and never stacked.

bar-chart id="sightings" {
    series name="Crebain" {
        point "Mon" 18
        point "Tue" 24
        point "Wed" 14
    }
    series name="Riders" {
        point "Mon" 3
        point "Tue" 2
        point "Wed" 5
    }
}

new BarChart(
        List.of(Series.of("Crebain", 18, 24, 14), Series.of("Riders", 3, 2, 5)),
        List.of("Mon", "Tue", "Wed"),
        Attributes.NONE.id("sightings")
);

The y axis includes zero and cannot be told otherwise, because a bar encodes its value as a length. A negative value hangs below the zero line. markers, logY, curve and times compile and draw the same pixels, and there is no fill: a bar is a solid rectangle. softAxis, axis, threshold, nulls, crosshair, loading and failed work as on a line chart.

Attributes

Styling

The CSS type is bar-chart, with the same parts, pseudo-classes and tokens as line-chart. Hovering highlights the band under the pointer.

Keyboard

As line-chart: Left, Right, Home, End and Escape on the focused plot.

Read more

• ADR-0200: A chart with no data says so
• ADR-0202: A limit is not a series
• ADR-0206: A crosshair may be shared and a bound may be soft

area-chart

A total and what it is made of: the series stacked into bands that add up.

area-chart id="provisions" {
    series name="Lembas" {
        point "Mon" 40
        point "Tue" 52
        point "Wed" 44
    }
    series name="Dried meat" {
        point "Mon" 12
        point "Tue" 9
        point "Wed" 15
    }
}

new AreaChart(
        List.of(Series.of("Lembas", 40, 52, 44), Series.of("Dried meat", 12, 9, 15)),
        List.of("Mon", "Tue", "Wed"),
        Attributes.NONE.id("provisions")
).curve(Curve.SMOOTH)
    .fill(Fill.GRADIENT);

Use a line-chart when the series are separate quantities and an area-chart when they are parts of one. The y axis includes zero. A curve is applied to both edges of a band, so the fill stays the difference its numbers say. fill is SOLID by default. GRADIENT fades each band within its own extent, and NONE is read as SOLID, because a band with no fill is not a band. markers and logY are ignored.

Attributes

Styling

The CSS type is area-chart, with the same parts, pseudo-classes and tokens as line-chart.

Keyboard

As line-chart.

Read more

• ADR-0204: A smooth line cannot overshoot
• ADR-0207: A fill may be a ramp

donut-chart

Part to whole: three to eight slices of one ring, with a legend that is always shown.

donut-chart id="packs" {
    series name="Lembas" {
        point 62
    }
    series name="Dried meat" {
        point 24
    }
    series name="Nothing" {
        point 14
    }
}

new DonutChart(
        List.of(Series.of("Lembas", 62), Series.of("Dried meat", 24), Series.of("Nothing", 14)),
        Attributes.NONE.id("packs")
);

One number per slice: the first value of each series. A donut of two slices is refused when it is built, because two parts are a ratio and progress reads better. A donut of nine is refused too, because the palette has eight distinguishable hues and the arcs are too narrow to compare. A donut has no axes, no crosshair and no isolation. Hovering shows a slice’s share in the hole. loading() and failed(message) are its only knobs.

Attributes

Styling

The CSS type is donut-chart, a column of donut-plot and chart-legend. The legend’s entries are a key, not controls, so they carry no .interactive. donut-plot:focus-visible draws the focus ring.

Keyboard

Left and Right walk the ring, wrapping at the ends, Home and End jump to the first and last slice, and Escape lets go.

Read more

• ADR-0194: A series colour is derived from Nord, not taken from it
• ADR-0199: A chart answers the keyboard and a step is relative

sparkline

A trend with no axes, no legend and no readout: the shape of a change beside a number.

sparkline id="safe" fill=#true marker=#true 61 68 74 79 83 86 89 91 93

new Sparkline(List.of(61.0, 68.0, 74.0, 79.0, 83.0, 86.0, 89.0, 91.0, 93.0)).fill(true).marker(true);

new Statistic("Days without loss", "93", "d", "+7", Statistic.Direction.UP,
        new Sparkline(SAFE, true, true, Attributes.NONE), Attributes.NONE);

The values are the node’s arguments, which is the one chart shape small enough to write inline. The line is scaled to the data’s own minimum and maximum, not to zero, because its job is the shape. A flat series is centred. Fewer than two values draws nothing. A sparkline is one series, so it has no palette slot: it is drawn in the color it inherits, which is how one inside a statistic takes the delta’s hue. A statistic takes its sparkline in Java only: its markup node reads no child.

Attributes

Styling

The CSS type is sparkline. It takes color for the line, the fill and the marker, and width and height from the stylesheet. The stroke is 1.5 px and is not a CSS property.

Keyboard

None. A sparkline is not focusable.

Read more

• ADR-0164: Elevation is an edge and a closed section is absent
• ADR-0194: A series colour is derived from Nord, not taken from it

What is not a chart here

The scope is dashboard-grade and five widgets, and docs/charts.md in the repository says what that rules out.

• No dual y-axis. Two measures at different scales are two charts, or one indexed to a common base.
• No colour per series. The palette is assigned by position. A rule on the chart’s id is the override.
• No query layer, no auto-refresh, no time-range picker. A chart takes a Series and redraws because the model changed.
• No histogram, heatmap, scatter, candlestick, pan or zoom. Those are science-grade and wait for a goldberry-plot module that does not exist.
• No sixth widget. When a request fits none of the five, the answer is a canvas, a table, or a different module.
