Markdown, HTML and the web

A Markdown note and an HTML page render as ordinary widgets under the ordinary cascade, and a web page is a window the desktop's own engine draws where the window system allows one.

By the end of this chapter you can show a document that follows a property, answer its links and task boxes, let a reader select and copy from it, and decide whether a real web page can be offered on the machine you are on.

The two views are in the goldberry-html module. Add it beside the toolkit and add its stylesheets beside the controls’ own, or a document renders as unstyled words:

var sheets = new ArrayList<>(Controls.stylesheets(theme));
sheets.add(MarkdownStyles.stylesheet());
sheets.add(HtmlStyles.stylesheet());

Nothing in the core knows the module exists. Its catalogue announces the two node names, and the inflater finds them when the module is on the module path (ADR-0131).

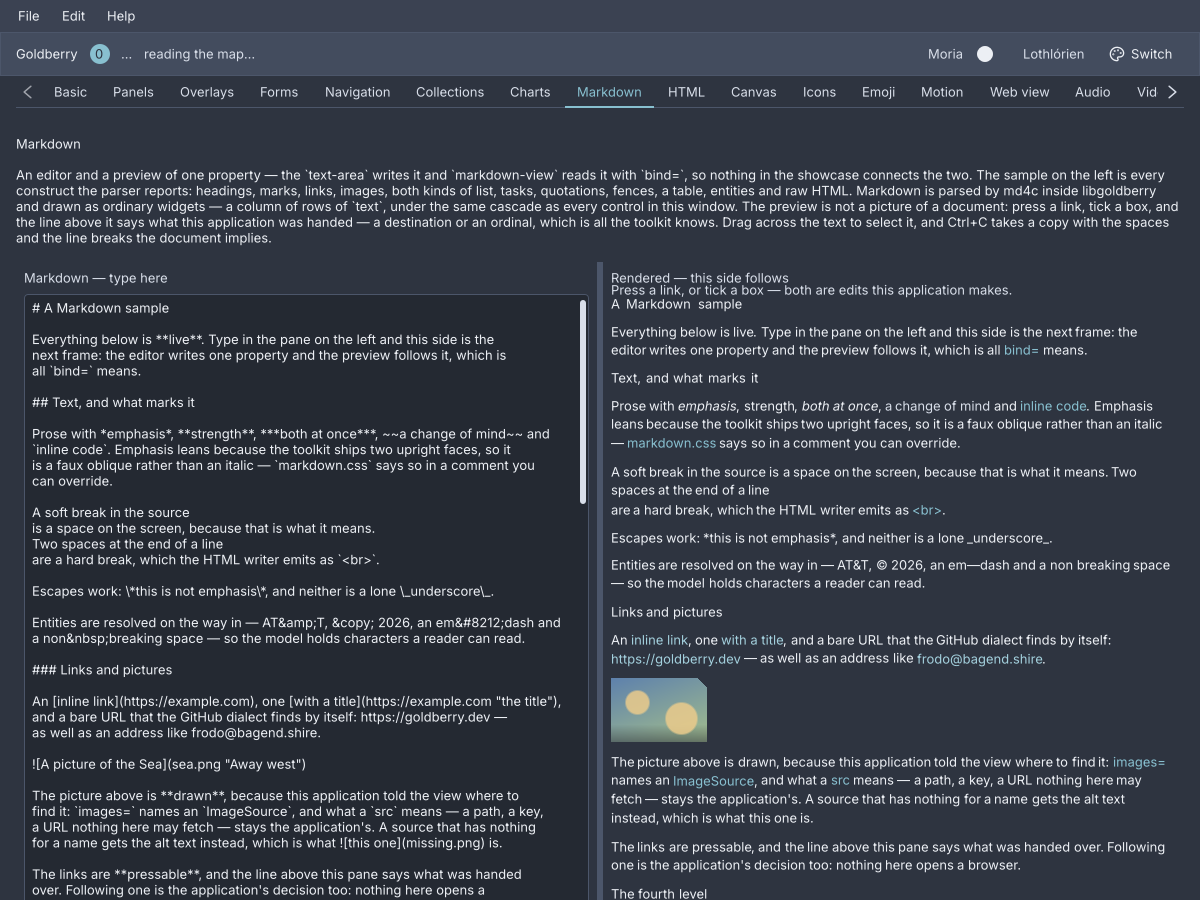

The showcase's Markdown screen: a text area on the left holding Markdown source and the rendered document on the right, with headings, emphasis, a list, a task list and a table

The showcase's Markdown screen. The editor writes one property and the view reads it.

markdown-view

A rendered Markdown document: GitHub’s dialect by default, parsed by md4c and folded into column, row and text.

split-pane position=0.5 first-min=240 second-min=240 {
    text-area class="mono" bind="note.source" change="note.set-source" fill=#true
    scroll {
        markdown-view bind="note.source" link="app.open" wikilink="app.open-page" images="app.assets" task="note.toggle-task"
    }
}

import dev.goldberry.markdown.Markdown;
import dev.goldberry.markdown.view.MarkdownView;

var view = MarkdownView.following(model.source())
        .onLink(app::open)
        .onWikiLink(app::openPage)
        .images(assets)
        .onTask(index -> model.setSource(Markdown.toggleTask(model.source(), index)));

A live preview is a binding. The editor writes note.source through its action and the view reads the same property with bind=. Nothing watches the editor or schedules a render: a keystroke marks the view for rebuild and the next frame is the parsed document (ADR-0296). A block whose source did not change keeps the widget it had, so a keystroke on a 50 kB note costs about 2 ms of build (ADR-0389).

Markup may also carry the document as the node’s argument. syntax picks the dialect, and a view with a document and a binding shows the document until the property answers.

markdown-view "A *little* document." syntax="commonmark"

In Java a Document is a value: Markdown.parse(text) or Markdown.parse(text, MarkdownSyntax.commonMark()) returns a sealed tree an application can walk for an outline before handing it to MarkdownView.of(document). MarkdownView.of(text) parses for the caller who wants a preview and nothing else. MarkdownHtml.of(document) writes the same tree out as an HTML fragment, so a preview and the bytes a server hands out cannot drift (ADR-0295).

A rendered document is read, and the application answers (ADR-0300). A link is a button.link, a Tab stop that hands its href to link= and does nothing else: no browser opens and no path resolves. A [[wiki link]] hands its target to wikilink=, and a view with no handler draws it inert. An image is its alt text until an ImageSource the application supplies turns the src into pixels. A task box reports its ordinal to task=, and Markdown.toggleTask(source, index) flips that one character of the source. The ordinal crosses as the string a document would have written.

Selection

Drag across the document, double-click a word, triple-click a block, Ctrl+A and Ctrl+C. What lands on the clipboard has the space between words and the newline between blocks that the document implies (ADR-0301). Nothing to switch on. A drag repaints rather than rebuilds.

Attributes

AttributeTypeDefaultWhat it does
argumentstring""The Markdown source, shown until bind answers
bindbindingnoneA property whose text is parsed on every build
syntaxgithub, commonmarkgithubThe dialect. Anything else is refused
linkvalued actionnoneHanded a link’s href
wikilinkvalued actionnoneHanded a wiki link’s target
imagesnamed ImageSourcenoneWhere an image’s src becomes pixels
taskvalued actionnoneHanded a task box’s ordinal, from zero
idstringnoneThe view’s id, on the column it builds
classstringnoneClasses on that column

Children are refused. There is no src= to read a file with, because a widget reading the filesystem during inflation is a decision not yet taken.

Styling

markdown-view composes and has no box of its own. It builds a column with the class markdown, and markdown.css hangs every rule off a class: md-h1 to md-h6, md-prose, md-line, md-lines, md-token, md-word, md-em, md-strong, md-struck, md-underline, md-code, md-code-block, md-code-line, md-code-language, md-link, md-wikilink, md-list, md-item, md-item-body, md-marker, md-quote, md-quote-body, md-table, md-row, md-cell, md-rule and md-raw. A link is a button with the class link. The sheet is in the toolkit’s base layer, so an application’s rule wins without !important.

Keyboard

Tab reaches each link, and Space or Enter presses it. Ctrl+A selects the document and Ctrl+C copies the selection.

What it does not do

Emphasis is a faux oblique, a skew rather than an italic face. A line of mixed faces is a row of words rather than one shaped run, so there is no justification and no hyphenation. The view is not scrollable, because scroll exists and the choice of where the scrollbar goes is the application’s.

Read more

html-view

A rendered HTML document: parsed in Java into a model of records and folded into the same widgets the Markdown view uses.

scroll {
    html-view bind="doc.source" link="doc.open" images="app.assets"
}

import dev.goldberry.html.Html;
import dev.goldberry.html.view.HtmlView;

var document = Html.parse(help.body());
var view = HtmlView.of(document).onLink(app::navigate).images(assets);
var links = document.find("a");

HtmlView.following(model.source()) is the Java spelling of bind=, and HtmlView.of(text) parses for a caller who wants a page and nothing else. The document may also be the node’s argument:

html-view "<p>A <em>little</em> page with <a href=\"/help\">a link</a>.</p>" link="doc.open"

An anchor becomes a button.link that hands its href to link=. It is a Tab stop, it hovers and it takes Space and Enter, so a help page is navigable from the keyboard. Whether the link may be followed is the application’s: no browser opens, no relative path resolves and nothing is fetched (ADR-0298). Selection and copy work as in the Markdown view.

Attributes

AttributeTypeDefaultWhat it does
argumentstring""The HTML source, shown until bind answers
bindbindingnoneA property whose text is parsed on every build
linkvalued actionnoneHanded an anchor’s href
imagesnamed ImageSourcenoneWhere an <img src> becomes pixels. Without one an image is its alt text
idstringnoneThe view’s id, on the column it builds
classstringnoneClasses on that column

Children are refused, and there is no src=.

Styling

html-view builds a column with the class html. Every element contributes the class html-<tag>, so html.css reads like a browser’s default sheet and a tag nobody anticipated is already styleable. A page’s own class="callout" arrives as html-callout. The structural classes are html-block, html-prose, html-line, html-lines, html-token, html-word, html-list, html-item, html-item-body, html-marker, html-table, html-row, html-cell, html-caption, html-quote, html-quote-body, html-pre, html-code-line, html-rule and html-term. Headings are html-h1 to html-h6.

Keyboard

As markdown-view: Tab to each link, Space or Enter to press it, Ctrl+A and Ctrl+C for the selection.

What it does not do

There is no engine behind it. No scripting, no network, no navigation and no forms. A <style> block is kept in the model and applied by nothing, because the cascade a page is under is the application’s stylesheets, which is what makes it follow the theme. Real inline layout, one shaped run across mixed faces, is what an engine would buy and is not built.

Read more

The web view

A real web page inside the window, drawn by the desktop’s own engine into a child window placed over the widget’s box. Java only: there is no markup name, because a page is a platform handle a document cannot describe.

import dev.goldberry.widgets.core.web.WebView;
import dev.goldberry.widgets.shell.web.WebPage;

new WebView(WebPage.of("https://goldberry.dev")).withAttributes(Attributes.NONE.id("page"));

A WebPage is a value: WebPage.of(url), WebPage.ofHtml(html) or WebPage.blank(), with title, sized, debug for the engine’s inspector, and on(name, callback) for a function the page’s own script can call. The widget follows the page it is handed, so navigating is rebuilding with another page (ADR-0449). A callback’s return value resolves the page’s promise and an exception rejects it (ADR-0448).

var page = WebPage.ofHtml(DEMO)
        .on("goldberrySays", arguments -> "\"Java heard you\"");

WebViews.open(host, page) opens a page in a window of its own instead, and returns empty where no page can be opened.

Ask before offering one

The engine is WebKitGTK, WebView2 or WKWebView, driven through a separate optional library so that GTK and WebKit are never load-time dependencies of the toolkit (ADR-0441). Most machines cannot open a page, so an application asks first:

if (Goldberry.capabilities().contains(Capability.WEB_VIEW)) {
    return new WebView(WebPage.of(HANDBOOK));
}
return new Button("Open the handbook", () -> Desktop.browse(HANDBOOK));

WebViews.isAvailable() is the same question.

PlatformWhat the page isStatus
X11, and XWaylandA GTK window reparented into this oneWorks
macOSA WKWebView, a subview of the window’s content viewWorks (ADR-0458)
WindowsA WebView2 child windowWritten, unverified
WaylandNothingRefused, and says why

Wayland refuses it

Embedding means putting the engine’s window inside the application’s. Wayland does not allow a client to reparent a foreign surface, and no protocol proposes it. On a Wayland session the widget opens nothing and paints a message saying why, rather than dropping a loose window on the desktop (ADR-0442). An application that wants a page there can ask SDL for the X11 driver with -Dgoldberry.backend.videoDriver=x11, which runs the window under XWayland.

What a page cannot share the screen with

The page is a window above the frame, not a raster in it. Nothing painted can cover it: a popover, a tooltip or a toast that overlaps the page is invisible where they meet. A scroll does not clip it. opacity, transform and the frost material do not reach it. No golden image contains one. A dialog is the exception: while a modal is up the widget parks its page off the side of the window and brings it back when the dialog closes (ADR-0444). A page is also opened parked and shown only once it reports itself loaded, with a spinner in its box until then (ADR-0445).

Input is the page’s. The window system delivers clicks and keys to the engine directly, and on macOS the backend drops key events while a page holds the keyboard (ADR-0459). Under X11 a window keeps presenting through the GPU with a page in it (ADR-0491). A page is taken down on WebKit’s thread, and its context outlives the application’s exit (ADR-0507).

Styling

The widget builds a column with the class web-view, a stack with the class web-stage, and a canvas with the class web-surface that carries the id and sizes the page. All three default to flex-grow: 1, so a page fills the box it is given. The page’s own document is not in the toolkit’s tree, so no stylesheet or theme reaches it. An application that wants a page to follow the desktop’s light or dark setting reads Host.systemTheme() and writes the CSS.

Keyboard

The page’s own. The toolkit forwards nothing.

Read more
